Description – Net and Grid JPE-072701

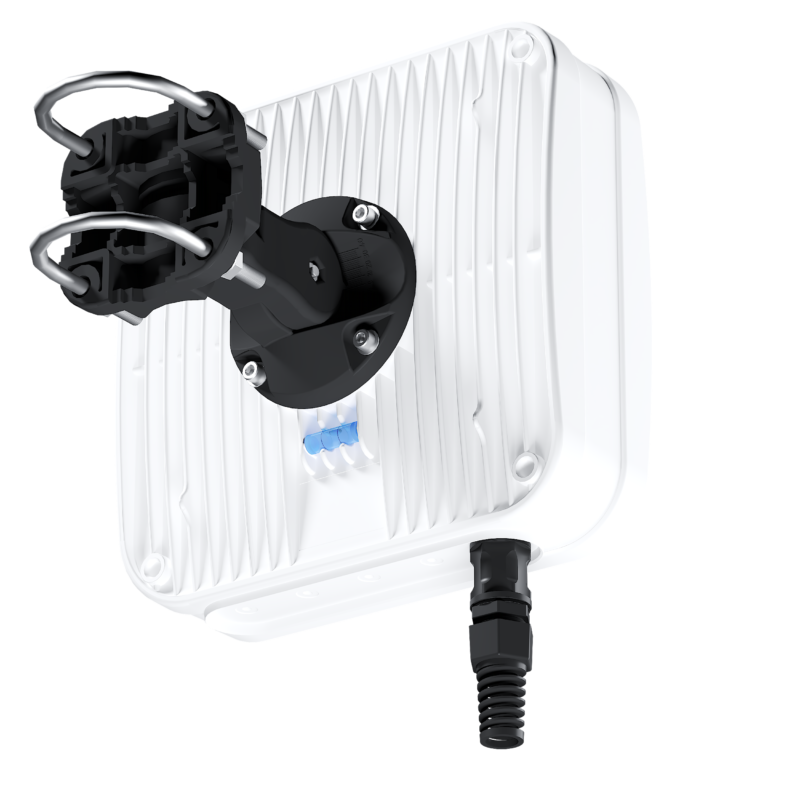

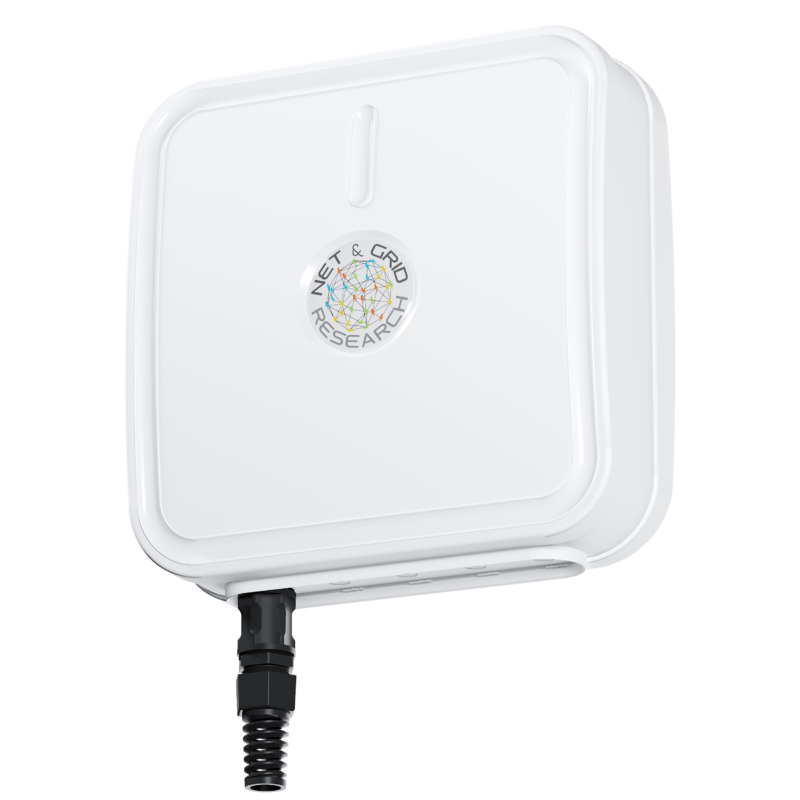

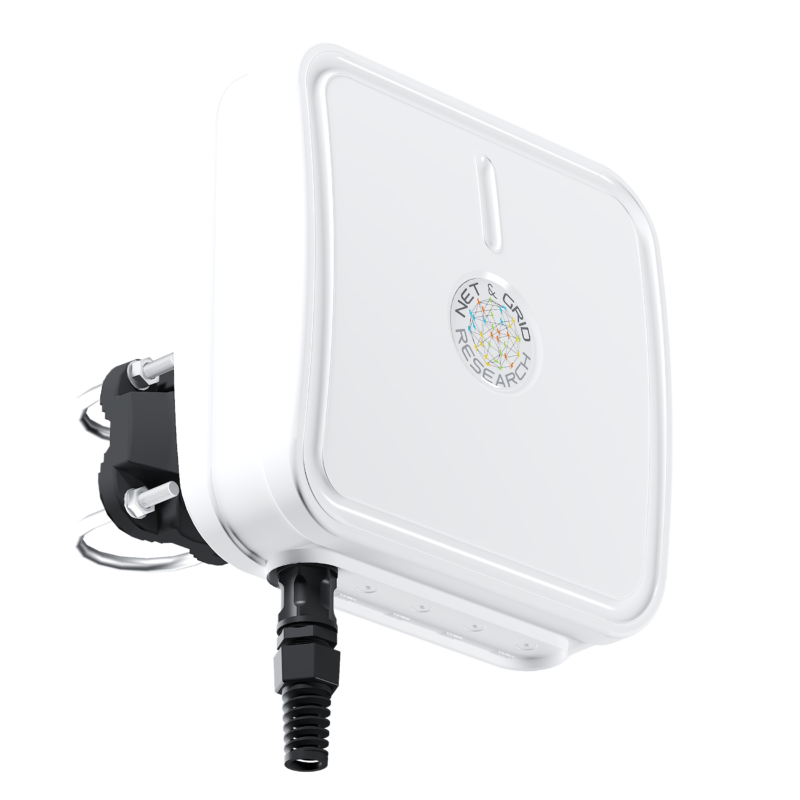

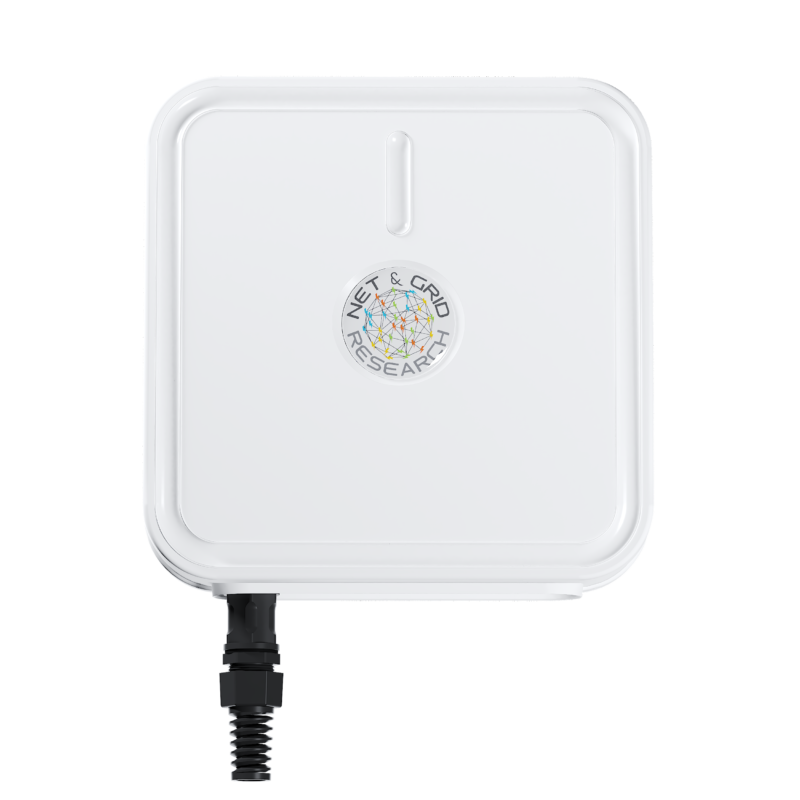

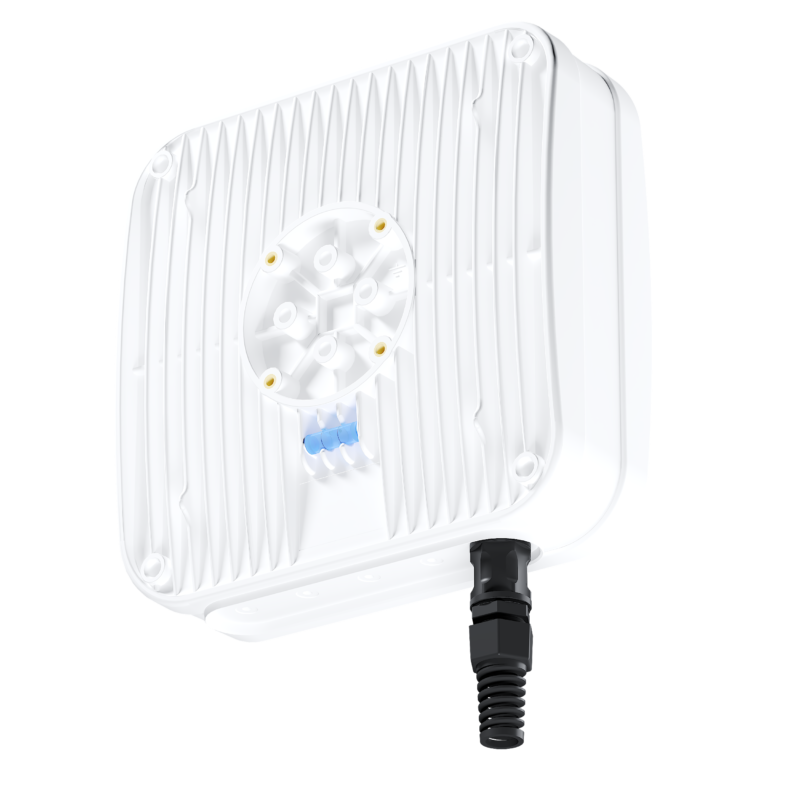

Net and Grid JPE-072701 is a directional antenna designed for LTE connections, works as MIMO2x2 VV-polarity system. The antenna can be used for most LTE bands. JPE-072701 can be used to build client side station (CPE radio/antenna) operating in all available operator´s bands (range 694-2700 MHz). The system has an installation compartment for installing an LTE radio powered by PoE using the enclosure’s high-quality waterproof RJ45 connector. The waterproof outdoor enclosure allows the user to place the unit in the best possible position and get the strongest LTE signal. It’s aesthetic shape makes it adaptable for most buildings/mounting positions. The JPE-072701 comes with two pigtails and SMA-Male antenna connectors inside the enclosure. It is built to mount with U-Bolts on a standard J-Mount or other similar mast. The mounting board is specifically designed for the cost effective Pepwave Max BR1 Mini LTE radio

Electrical specifications

● Band 1
● Band 2
● Band 3
Frequency
●0.694 – 0.96 GHz
●1.7 – 2.2 GHz
●2.2 – 2.7 GHz
Gain
●4 dBi
●5 dBi
●6 dBi
VSWR
●<1.50, max < 2.00
●<1.30, max < 1.60
●<1.30, max < 1.60
Beamwidth
●90°/90°   +/- 30°
●90°/90°   +/- 30°
●90°/90°   +/- 30°
Polarization
●V
●V
●V
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes

Mechanical specifications

Material
ABS
Outer dimensions
27.2 x 27.6 x 9.6 cm
10.71 x 10.87 x 3.78 inch
Connector
RJ45 & 2xSMA (Male)
Weight
1.2 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F

Mounting Kit

Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
250 – 650mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts

Systems

  • LTE band – 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360
  • WiMAX – 2.3 GHz, 2.5 GHz, 700 MHz
  • 3G – 2100 MHz, 850 MHz, 900 MHz
  • GSM – 1800 MHz, 1900 MHz, 850 MHz
  • RFiD – 2400 – 2483 MHz, 865 – 868 MHz, 902 – 928 MHz
  • ISM – 2400-2483 MHz, 868-870 MHz
  • WLAN – 2.4 GHz
  • Bluetooth – 2400-2483 MHz

Applications

  • LTE CPE for Fixed Wireless
